About the ABB IRB 1200
The ABB IRB 1200 is a compact 6-axis industrial robot offering high speed and repeatability, easily integrated into tight spaces. As an ABB Robotics System Integrator, Yıldız Mekatronik handles robot selection, cell design, gripper integration, safety equipment and commissioning end to end.
Technical Specifications
- Axes: 6
- Payload: 5 kg (7 kg optional)
- Max reach: 901 mm / 703 mm
- Repeatability: ±0.025 mm
- Mounting: Floor, wall, tilted or ceiling
- Protection: IP40 (IP67 wrist optional)
- Controller: OmniCore / IRC5 Compact

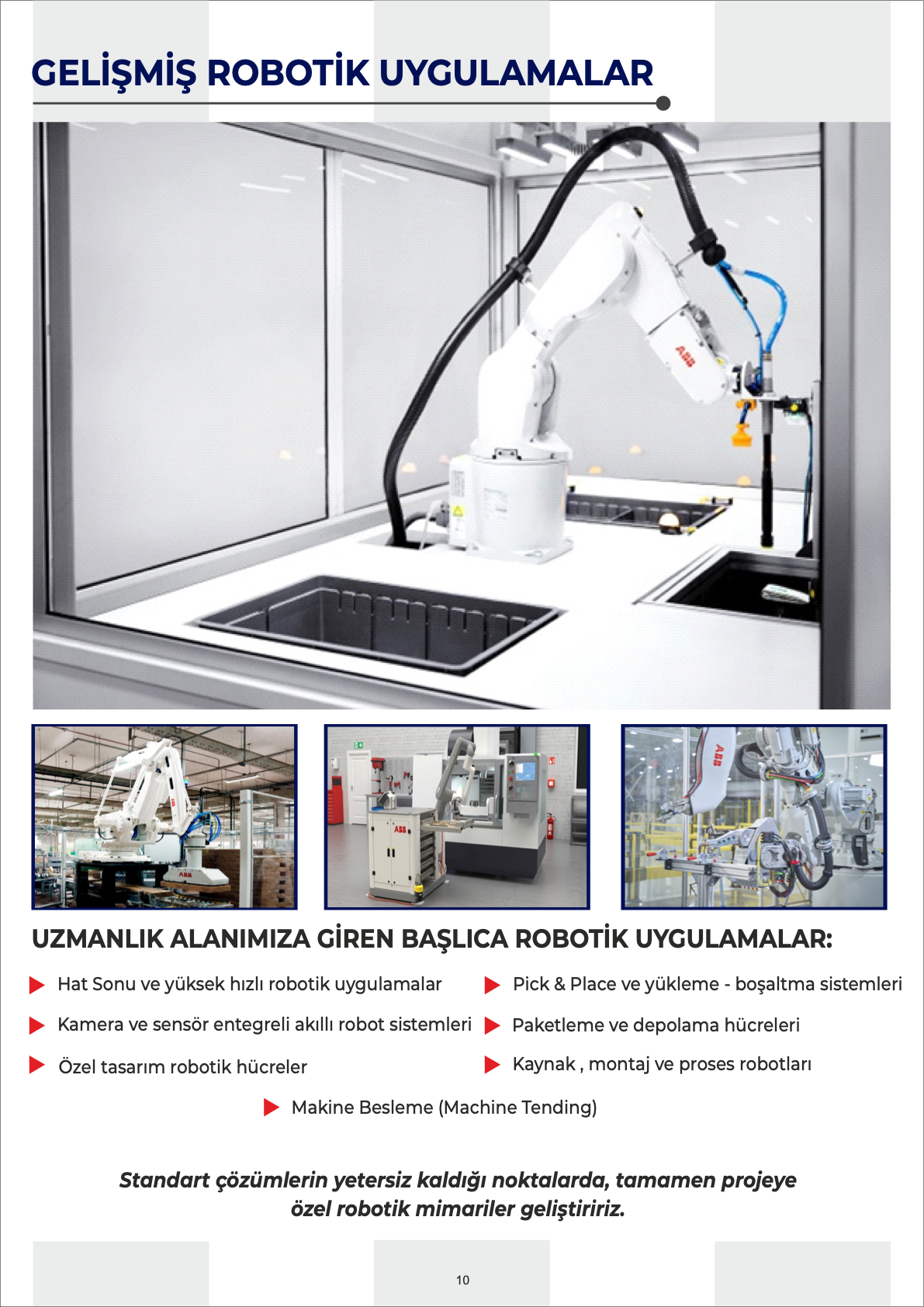

Typical Applications
- Pick & place and high-speed material handling
- Machine tending
- Small-part assembly and screwdriving
- Test, measurement and quality control cells
- Bin picking with Mech-Mind 3D cameras
We manage your investment from a single hand with turnkey robot cell design, PLC + robot synchronisation, CE safety compliance, operator training and 24/7 technical service.
